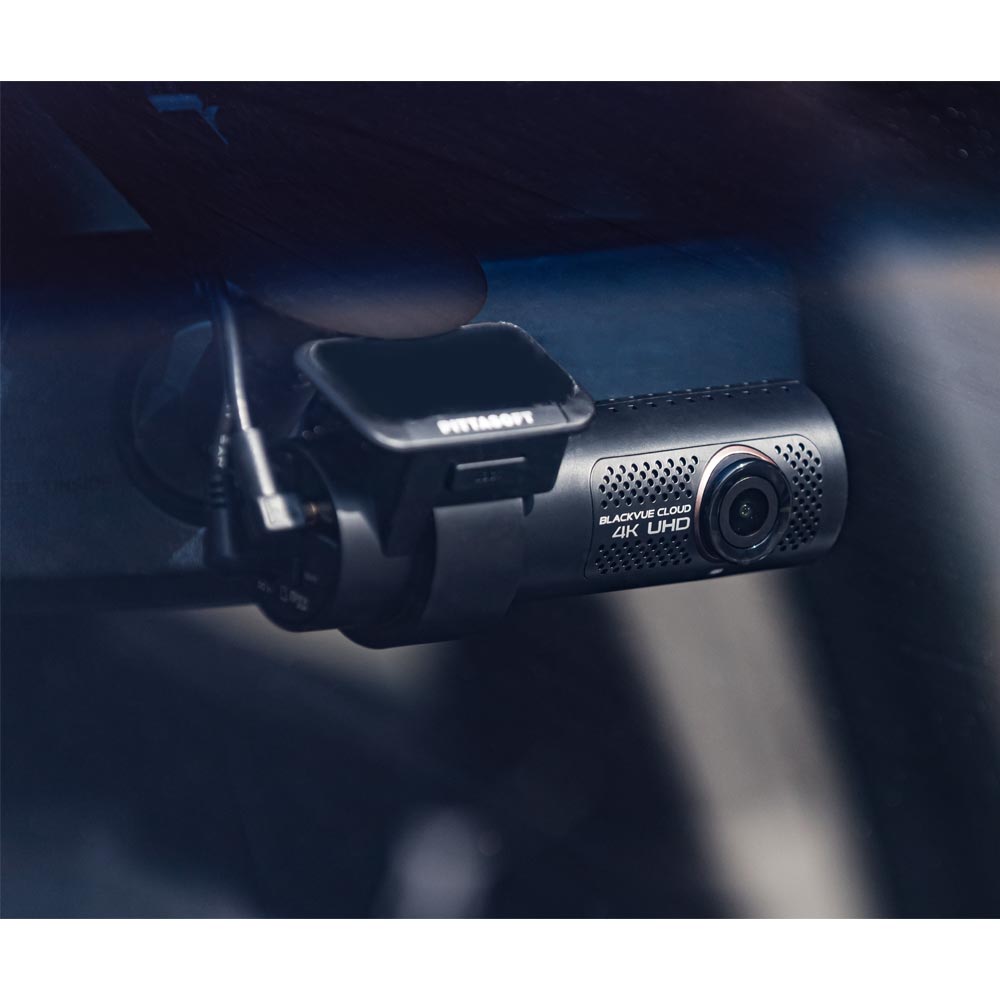

Front camera: 8 megapixels CMOS sensor recording in 4K Ultra High Definition (3840×2160) at 30FPS.
Rear camera: 2.1 megapixels Sony STARVIS™ recording in Full HD (1920×1080) at 30FPS.
The front camera’s ultra-wide 162-degree angle takes full advantage of the 4K UHD resolution. The rear camera records in Full HD at a 139-degree angle with outstanding low-light sensitivity. Native Parking Mode with built-in voltage monitor to protect your vehicle battery (hardwiring cable included).
4K in a dashcam is not a gimmick. It is a game-changer. It is not about playing videos on a giant screen–although you could do that too. It’s about providing video proof. A dashcam is only as good as its ability to capture crucial details–usually license plate numbers. The 8-megapixel 4K UHD sensor does just that by capturing 4 times as many pixels as in Full HD.
And with its fast shutter speed, details are frozen in place. Just pause and zoom in.
**We recommend SanDisk Extreme Pro MicroSD V30 cards 128gb and above**
| Model Name |
DR900X-2CH Plus 4K UHD DASHCAM |
| Channel |
2CH |
| Highlights |
4K UHD (Front) + Full HD (Rear), 2.4-5GHz Wi-Fi, Cloud, External LTE Module (Optional) |
| Product Dimensions |
Front: W 118.5 mm (4.67") x H 36 mm (1.42") / 106 g (3.74 oz)
Rear: W 67.4 mm (2.65") x H 25 mm (0.98") / 25 g (0.88 oz) |
| Rear Camera Connection |
Coaxial cable |
| Memory Support |
microSD card up to 256GB |
| Recording Modes |
– Normal,
– Event (Impact Detection / Speed Limit / Manual),
– Parking Mode (Impact+Region-based Motion Detection, Timelapse+Events) |
| Parking Mode |
YES (with 3-wire hardwiring cable – included) |
| Imaging Sensor |
Front: 8MP CMOS Sensor
Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP) |
| Viewing Angle |
Front: Diagonal 162°, Horizontal 136°, Vertical 77°
Rear: Diagonal 139°, Horizontal 116°, Vertical 61° |
| Resolution Frame Rate |
Front / Rear
-4K UHD (3840×2140) @30fps / Full HD (1920×1080) @30fps
*Frame rate may vary during Wi-Fi streaming |
| Image Quality and Bitrate Front/Rear |
Highest (Extreme): 25+10 Mbps
Highest: 12+10 Mbps
High: 10+8 Mbps
Normal: 8+6 Mbps |
| Event File Overwrite Protection |
YES (up to 50) |
| SD Card Failure Alert |
YES |
| Scheduled Reboot |
YES |
| Video File Extension |
MP4 |
| Wi-Fi |
Built-in (802.11 a.b.g.n.ac) |
| Cloud Compatible |
YES |
| GPS |
Built-in (Dual Band : GPS, GLONASS) |
| Microphone |
Built-in |
| Speaker |
Built-in |
| Impact Sensor |
3-Axis Acceleration Sensor |
| Button |
Button: Wi-Fi ON/OFF (Tap)
Proximity sensor: Mic ON/OFF / Trigger Manual Recording / OFF (configurable) |
| Operation Temperature |
20 °C - 70 °C (-4 °F - 158 °F) |
| High Temp Cut Off |
Approx. 75? (167°F) |
| Backup Battery |
Built-in supercapacitor |
| Input Power |
DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
| LTE |
External (Optional) |
