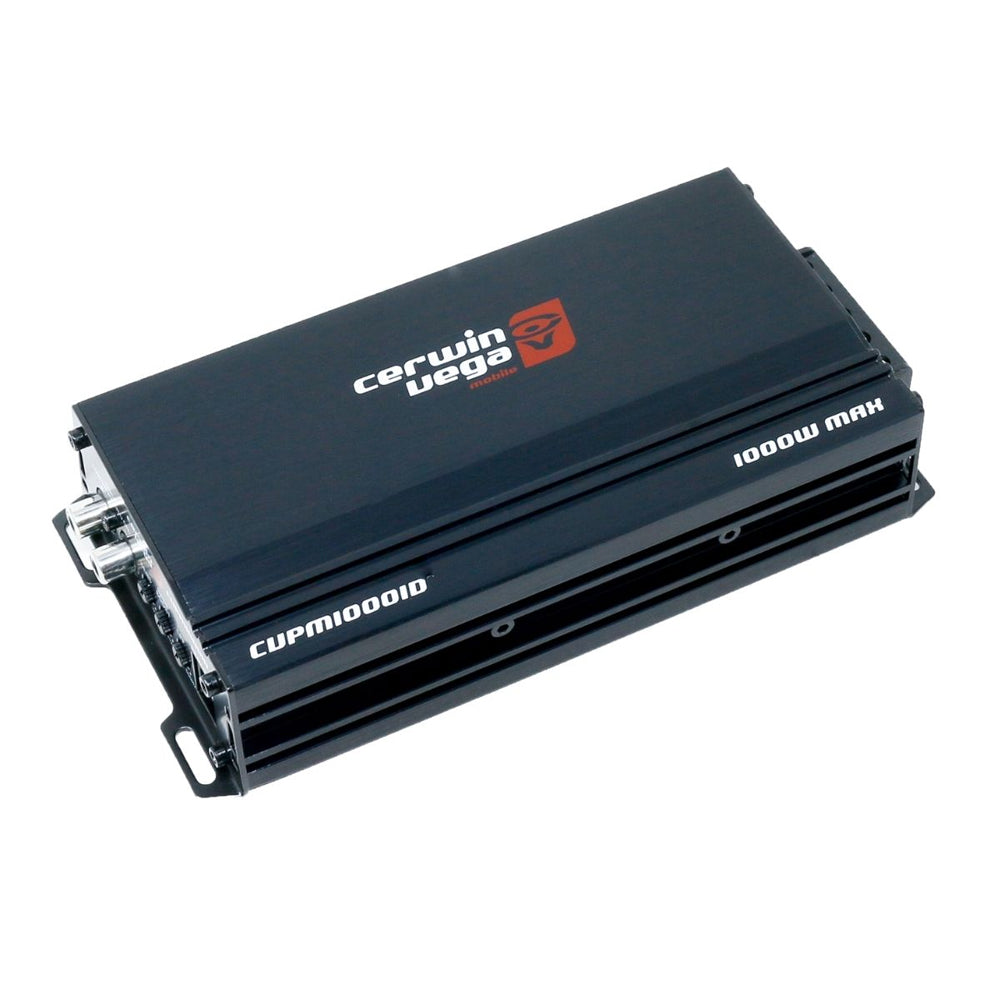

The Cerwin Vega Amplifier Cvp Series Mono 350W Rms @ 4Ohm / 500W Rms @ 2Ohm from Cerwin Vega is designed for reliable performance and professional use across workshop, trade, automotive, and industrial applications in New Zealand.
Features:
• Trusted Cerwin Vega quality
• Ideal for car audio applications
• Suitable for amplifiers use
• Professional trade and workshop performance
• Fast NZ-wide delivery from NZ Fasteners
Product Details:
CVP Mini-Series 1-Channel Mono Block Class-D Car Amplifier Power Rating (RMS) RMS POWER PER CHANNEL 4Ω 310W X 1 RMS POWER PER CHANNEL 2Ω 500W X 1 WATER RESISTANCE - YES FREQUENCY RESPONSE (HZ): 35HZ-500HZ Power Supply Power Supply: Full WPM Power Supply Threshold: 10.0V-17.0V (DC) Idle Current: (0.7A) Distortion THD 4 (1KHZ @4Ω): 0.01% S/N RATIO (A WEIGHTED @1W): -85dBA S/N RATIO (A WEIGHTED @FP): -101.1dBA Input Sensitivity Hi/Low Level Input: 0.15mV-6.0V Input Impedance Low Level Input: 20KΩ Output Stage Output Impedance: 0.0297Ω Damping Factor (50Hz@4Ω): >70 Bandwidth (-3db): 10Hz-45KHz Crossover (1-12dB/Oct) Variable High-Pass: Variable low-Pass: 35Hz-500Hz Fuse Rating 2x30A Dimensions Length x Width x Height: 7.64”x3.7”x1.47” (194mm x 95mm x 37.3mm) CVP Mini-Series 1-Channel Mono Block Class-D Car Amplifier Power Rating (RMS) RMS POWER PER CHANNEL 4Ω 310W X 1 RMS POWER PER CHANNEL 2Ω 500W X 1 WATER RESISTANCE - YES FREQUENCY RESPONSE (HZ): 35HZ-500HZ Power Supply Power Supply: Full WPM Power Supply Threshold: 10.0V-17.0V (DC) Idle Current: (0.7A) Distortion THD 4 (1KHZ @4Ω): 0.01% S/N RATIO (A WEIGHTED @1W): -85dBA S/N RATIO (A WEIGHTED @FP): -101.1dBA Input Sensitivity Hi/Low Level Input: 0.15mV-6.0V Input Impedance Low Level Input: 20KΩ Output Stage Output Impedance: 0.0297Ω Damping Factor (50Hz@4Ω): >70 Bandwidth (-3db): 10Hz-45KHz Crossover (1-12dB/Oct) Variable High-Pass: Variable low-Pass: 35Hz-500Hz Fuse Rating 2x30A Dimensions Length x Width x Height: 7.64”x3.7”x1.47” (194mm x 95mm x 37.3mm)
