The Cerwin Vega Amplifier Xed Series Mono 450W Rms @ 4Ohm / 800W Rms @ 2Ohm from Cerwin Vega is designed for reliable performance and professional use across workshop, trade, automotive, and industrial applications in New Zealand.
Features:
• Trusted Cerwin Vega quality
• Ideal for car audio applications
• Suitable for amplifiers use
• Professional trade and workshop performance
• Fast NZ-wide delivery from NZ Fasteners
Product Details:

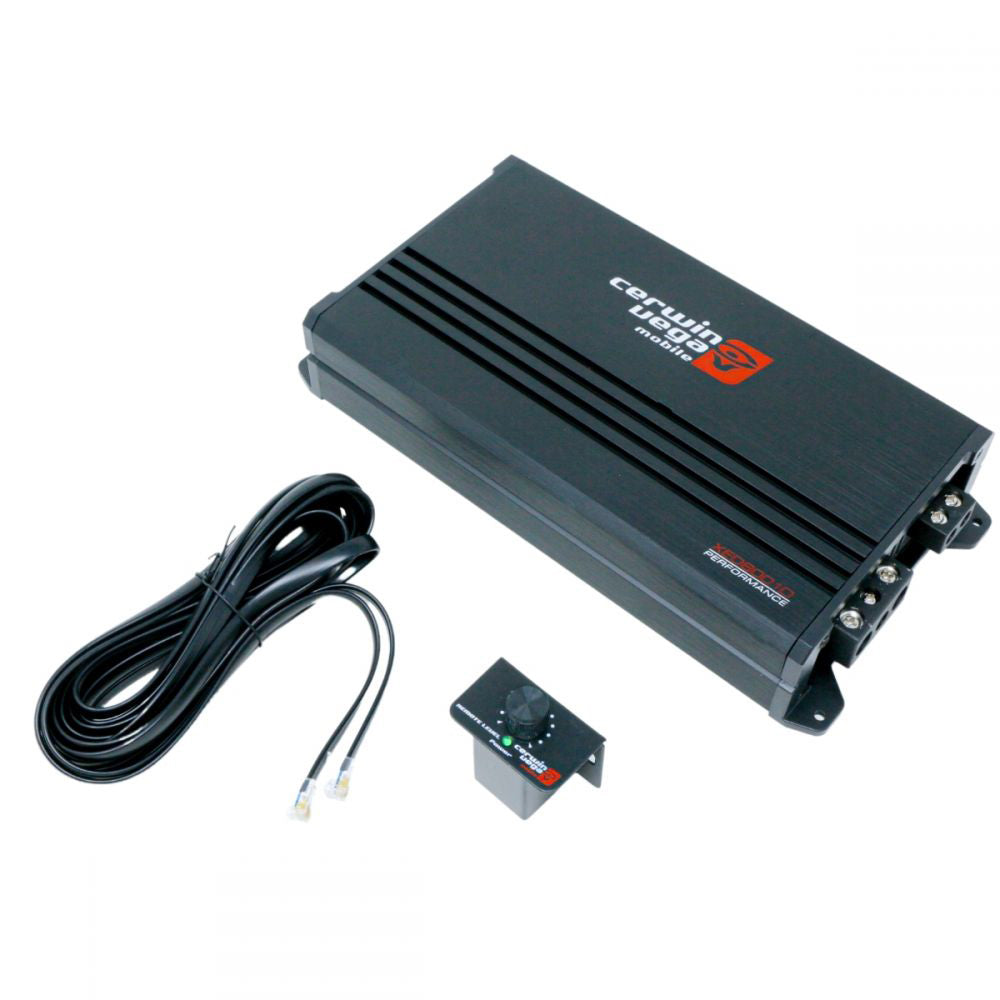

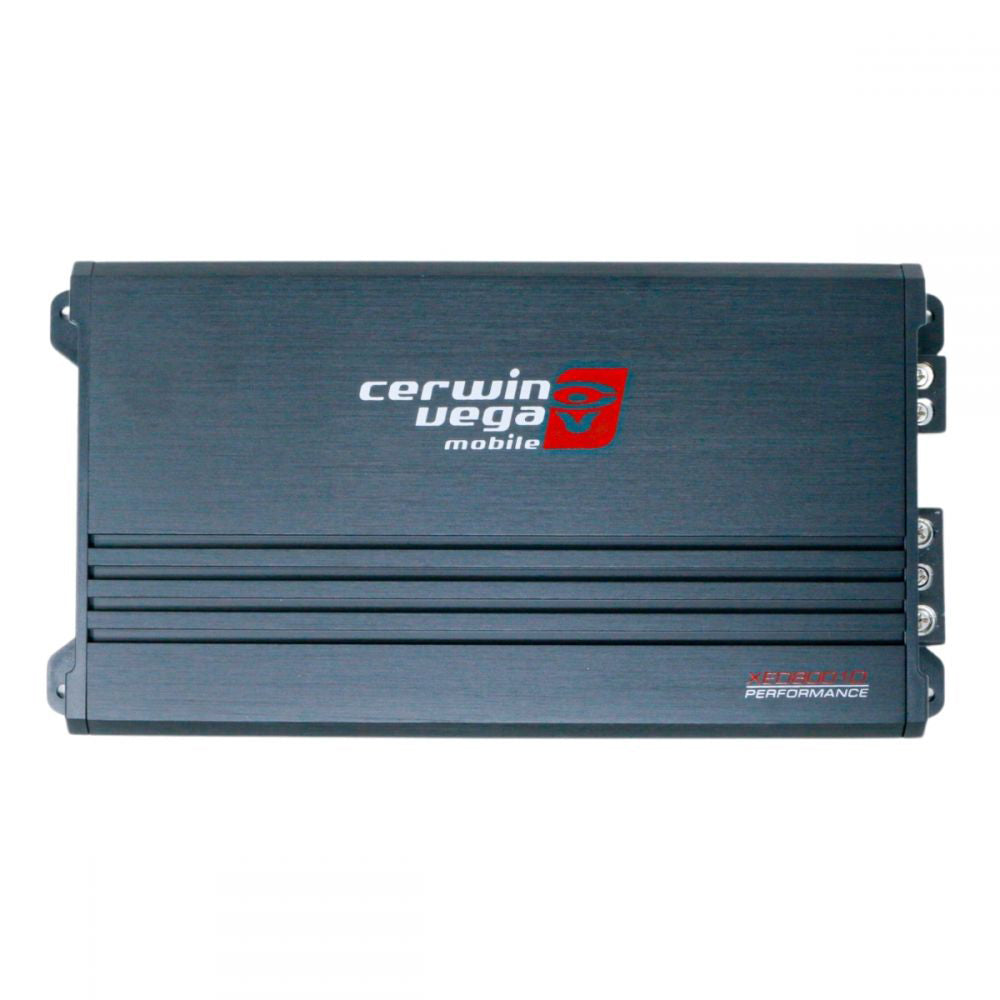

XED8001D - 1 Channel XED Series Class-D Amplifier Key Features: • 1-channel Monoblock Class-D car audio amplifier • Designed specifically for high-performance subwoofer systems • High-efficiency amplifier technology for powerful output • Lightweight aluminum chassis for superior heat dissipation • Clean, distortion-free bass reproduction • Ideal for aftermarket subwoofer upgrades Specifications: POWER RATING FREQUENCY RESPONSE (HZ): 35HZ - 350HZ RMS POWER PER CHANNEL 4Ω 450W X 1 RMS POWER PER CHANNEL 2Ω 800W X 1 POWER SUPPLY Power Supply: Full PWM Power Supply Threshold: 10.0V-16.0V (DC) Idle Current: (0.7A) DISTORTION THD 4 (100Hz @4Ω): S/N Ratio (A weighted @1W): -85dBA S/N Ratio (A weighted @FP): -101.1dBA INPUT SENSITIVITY Low Input Level: 250mV-6V High Input Level: 1.1V~>20.0V INPUT IMPEDANCE Low Input Level: 20KΩ High Input Level: 100Ω OUTPUT STAGE Output Impedance: 2Ω Damping Factor (50Hz @ 4Ω): >70 Bandwidth (-3dB): 10Hz-250Hz CROSSOVER (-12dB/Oct) Variable High-Pass: Variable Low-Pass: 35Hz-250Hz Variable Sub-Sonic: 10Hz-50Hz FUSE RATINGS ATC: 35A x 2 (Inside) DIMENSIONS L x W x H: 8.7”x 4.7”x 1.8” (220mm x 120mm x 46.5mm) FEATURES Bass Boost: 0dB-12dB LED Power/Protect Light Indicator Bass Control Included MFR #: XED8001D
