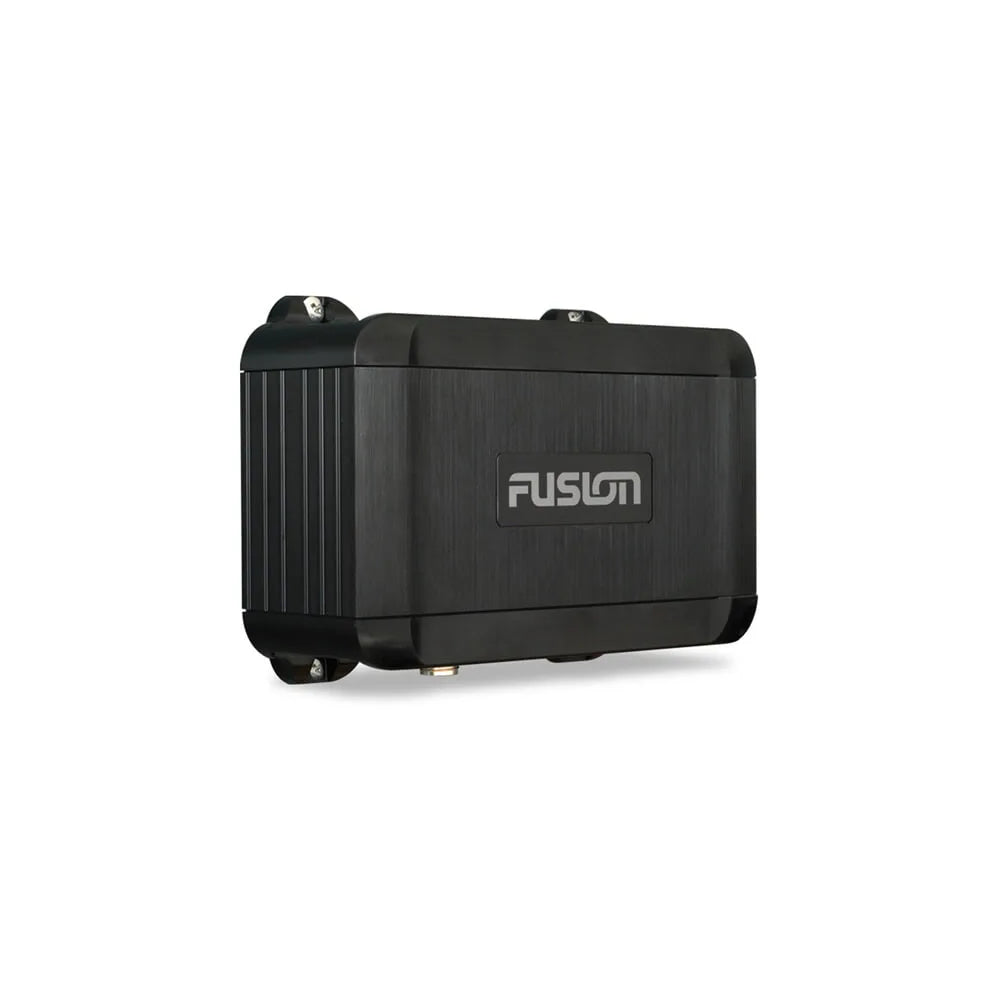

There is no need to compromise on quality audio entertainment due to limited helm space with the value packed Fusion MS-BB100 compact black box entertainment solution.
Fusion Black Box Stereo System BB100 with BT/AM/FM/iPhone/Android 2 Zones and Fusion Link App control & Fusion Link MFD control ( NMEA 2000)
- Compact form factor allows for easy installation on your boat
- Control the BB100 using the included IPX7 wired remote control
- Built-in Class-AB amplifier delivers efficiency with reduced distortion
- Multi-Zone™ technology gives you control of 2 separate audio zones
- Control your music from a compatible multifunction display (MFD), smart device or Garmin watch
| General |
|
| Physical dimensions |
Black Box (HxWxD): 2.63" x 6.10" x 3.70" (60 x 155 x 94 mm) Remote (Diameter x Depth): 2.56" x 2.13" (65 x 54 mm) |
| Water rating |
Black Box: IPX3 (when properly installed)
Remote: IPX7 (front panel only, when properly installed) |
| Power input |
10.8-16 VDC |
| Operating temperature range |
32° to 122° F (0° to 50° C) |
| Current (max.) |
15 A |
| Fuse |
15 A |
| NMEA 2000 LEN |
1 (50 mA) |
| Bluetooth wireless range |
Up to 30 ft. (10 m) |
| ANT wireless range |
Up to 10 ft. (3 m) |
| Wireless frequencies/protocols |
Bluetooth 2.4 GHz @ +1.9 dBm nominal
ANT 2.4 GHz @ +1.9 dBm nominal |
| Compass-safe distance |
5.9" (150 mm) |
| Built-in amplifier |
Class-AB |
| Peak power |
200 W |
| Rated power output (4 Ohm) |
26 W rms x 4 @ 14.4 V input < 10% THD |
| Fusion-Link™ control |
Yes (MFD, smartphone and Garmin watch) |
| Multi-Zone™ technology |
2 zones |
| Bluetooth wireless technology |
Yes |
| ANT wireless technology |
Yes |
| DAB+ ready |
Yes (requires DAB100A antenna module) |
| NRX remote compatibility |
Yes (MS-NRX300 Compatible remote display)
|
| Software updates |
USB |
| Warranty |
1 year |
| Sources |
|
| Sources |
AM/FM/Bluetooth/USB audio/iPhone/iPod/AUX x1/AOA/
DAB+ ready (available in Europe and Australia only) |
| Auxiliary input |
1 RCA input (AUX) |
| NMEA 2000 |
One USB 2.0 port |
| USB 2.0 |
One USB 2.0 port |
| AM/FM radio |
One Motorola antenna connector port |
| Speaker |
2 connections (2 zone amplified) |
RCA Pre-out
(left, right and subwoofer) |
2 zones (requires external amplification) |
| Line out |
2 (1 x L + R per zone, requires external amplification) |
| Subwoofer out |
1 x mono output (requires external amplification) |
