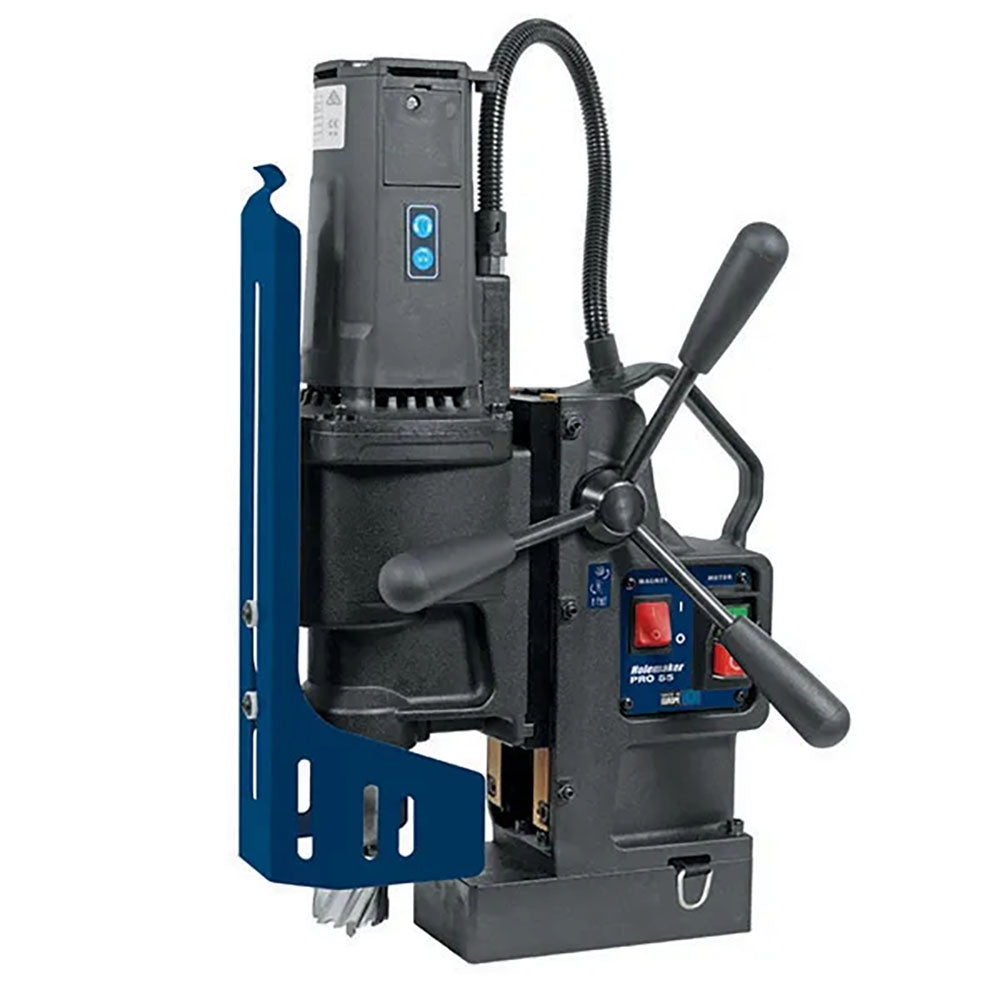

Product: Holemaker PRO55 Magnetic Base Drill
Specifications:
-
SKU: HMPRO55
-
Product Type: Tap
-
Length: 165mm
-
Material: Steel, Plastic
-
Features: Magnetic, Long
Additional Details:
- Material: FEATURESNew generation machines with the latest technology anddesign.• New Rigid Frame Design • Provides increased life of cutting tools.• New Extra Large 165mm Stroke • Enables the use of long tooling such as extension arborsand large depth cutters for drilling box section steel inone pass twist drills reamers taps etc.• Magnetic Field Shape Control (MFSC) • Provides maximum holding power on thin materials.• Lightweight & Powerful • The new generation Holemaker machines are lighter andmore powerful than other brands on the market.
- Features:• European made machine• Extra large 165mm stroke allowing the use of an optional13mm twist drill chuck• Industrial 2-speed gearbox• Through spindle coolant system with an external sidemounted gravity feed coolant tank• The feed handles can be placed on either the left or righthand side for increased versatility• Smart magnet technology to ensure sufficient magneticadhesion• Integrated cutter guard for increased user safety• Supplied in a blow mould plastic carry case• Grub screw arbor system which fastens positively ontoHolemaker cutters• 13mm drill chuck SA70102 available separately
- Material: SPECIFICATIONS• Capacity (Diameter): 55mm• Capacity (Depth): 75mm• Capacity (Twist Drills): #2 Morse Taper 18mm• Motor Power: 1100 Watt• Input Power: 1200 Watt Single Phase 240V• Speed: 2 Speed 200 / 400rpm• Weight: 15.5kg• Magnetic Dead Lift: 9 900Nm On 25mm Steel Plate• Stroke: 165mm• Height (Min. / Max.): 409 / 574mm
