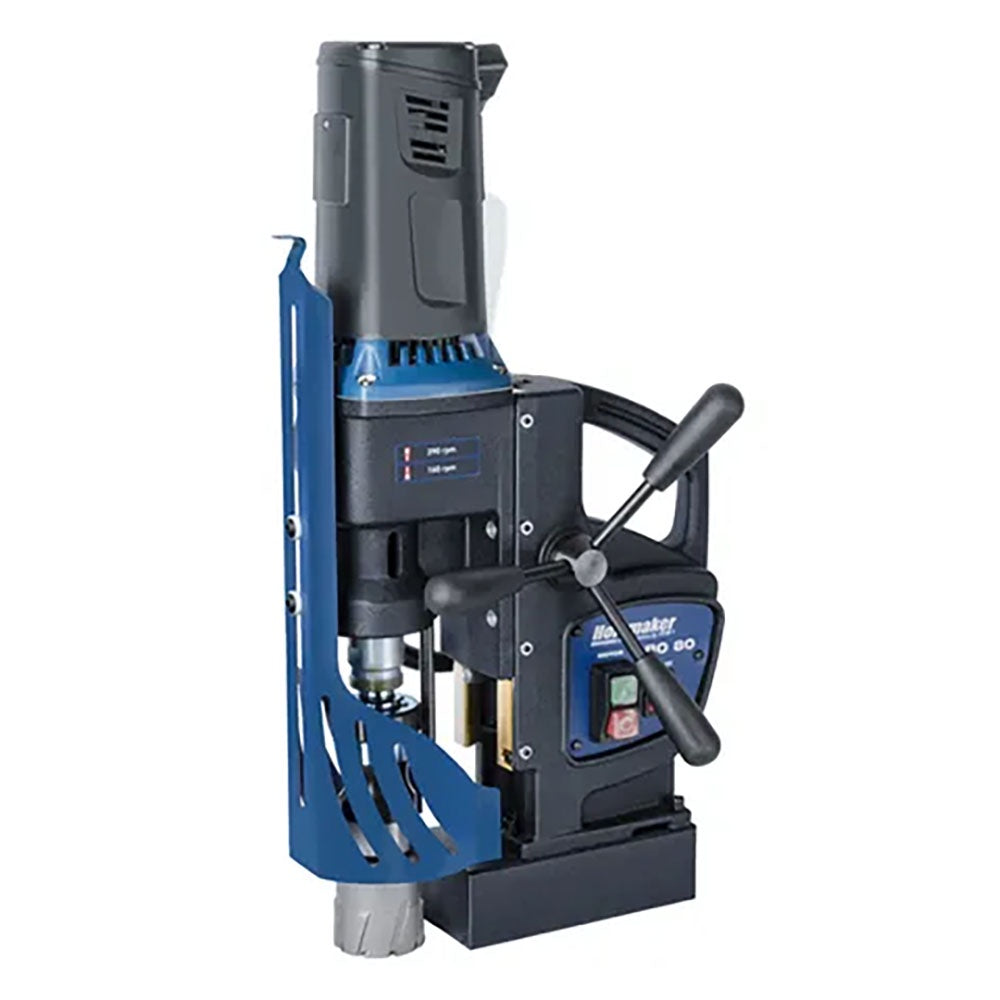

Product: Holemaker PRO80 Magnetic Base Drill 240V 3MT
Specifications:
-
SKU: HMPRO80
-
Metric Size: M30
-
Size / Length: 110mm x 75mm
-
Material: Steel
-
Features: Magnetic, Heavy Duty
Additional Details:
- Feature: FeaturesThe Holemaker PRO 80 is an extra heavy duty mid-sizedmachine capable of producing burr-free holes up to 80mmdiameter by 110mm depth. The 1500w motor with 2-speedmechanical gearbox produces superb torque through gearreduction in low speeds. No. 3 Morse Taper spindle bore foruse with taper shank drills tapping head (M30 Capacity) andtaper shank reamers.
- Supplied complete with side mounted coolant system and arborfor use with ¾ shank Holemaker cutters up to 75mm diameterand 75mm depth of cut. Optional arbor to take 1-1/4 shankcutters up to 80mm diameter and 110mm depth.
- Feature: • Lightweight for a large capacity machine only 18kg• Rigid casting designed to withstand firm downward drillingforce prolonging the machine and tooling life• New generation Italian made motor and heavy-duty 2 speedgearbox• Semi-automatic gib adjustment enables simple fastcorrect and repeatable slide backlash settings without anyexpert knowledge or experience• Magnetic Field Shape Control (MFSC) provides maximumholding power on thin materials• Magnetic Power Adhesion Control (MPAC) detects theadhesive force of the electromagnetic base and protects boththe machine and the operator from working on too thinworkpiece• 2 Years Warranty
- Material: Specifications• Capacity (Diameter): 80mm• Capacity (Depth): 110mm• Capacity (Twist Drills): 25mm• Spindle Taper: MT3• Motor Power: 1500 Watt 240V Motor• Input Power: 1600 Watt• Speed: 2 speed heavy-duty gearbox 160/390rpm• Weight: 18kg• Magnetic Dead Lift: 11 000 N on 25mm steel plate• Stroke: 190mm• Height (Min./Max.): 476mm/666mm
