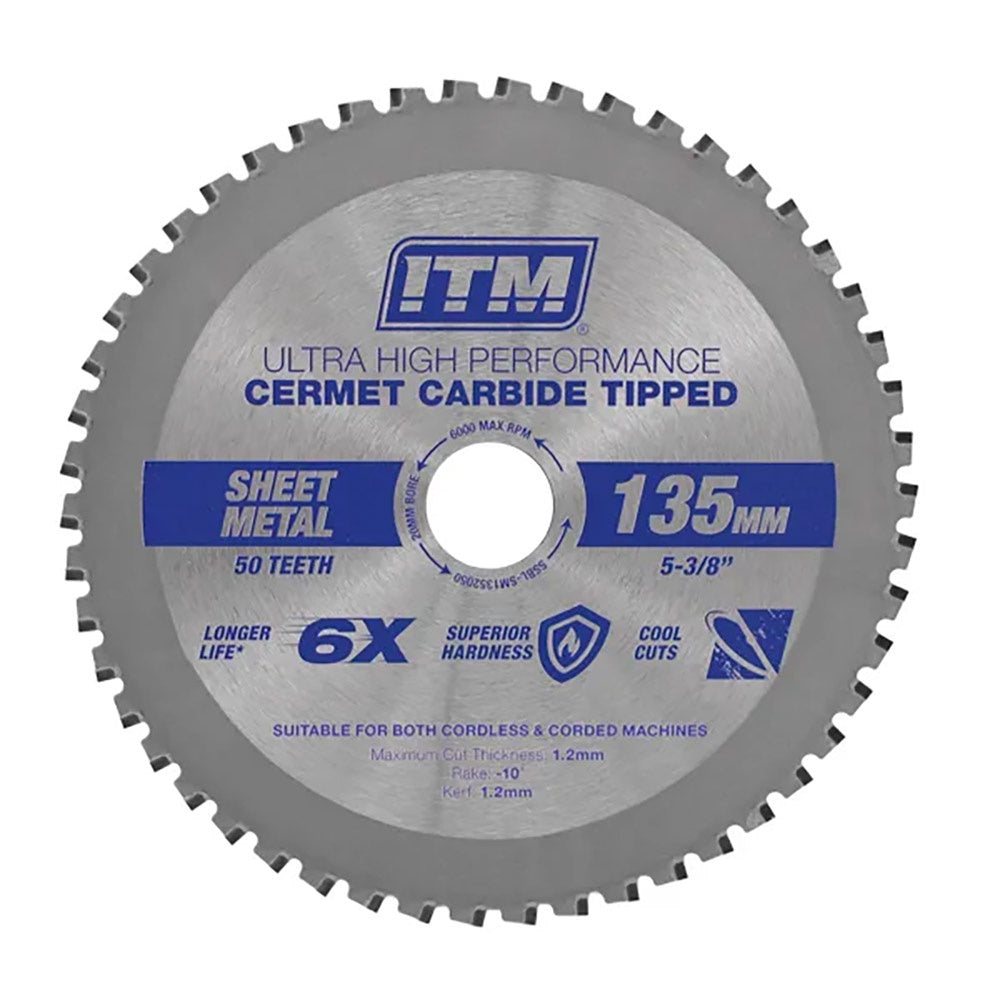

Product: ITM 135mm Sheet Metal Cutting Blade Cermet CarbideTipped 50T
Specifications:
-
SKU: SSBL-SM1352050
-
Product Type: Blade
-
Length: 135mm
-
Features: Long
Additional Details:
- ITM 135mm Sheet Metal Cutting Blade CermetCarbideTipped 50T
- Material: • Premium Cermet Carbide cutting tips for sizes 135mm and150mm• C6 Carbide tips for sizes 165mm and 185mm giving optimalperformance for the blade size• Suitable for cutting: Flat Sheet Corrugated SheetRoofing Steels & Cladding• 6 times longer life than standard TCT blades
- CERMET CARBIDE CUTTING TIPS• Cermet carbide tips used on 135mm & 150mm Sheet Metalcutting blades.• CERMET is an ultra-high performance cutting tip made ofCeramic (CER) and Metal (MET) materials.• CERMET has the advantages of both metal and ceramic. Ithas LOW DENSITY HIGH HARDNESS WEAR RESISTANCE goodthermal conductivity and will not become brittle due tosudden cold or sudden heat.• This latest technology in cutting tips offers the highestperformance and cost balance possible for cutting a completerange of metal types.• Cermet tips easily outperform regular Tungsten Carbide Tip(TCT) saw blades.
- C6 TUNGSTEN CARBIDE CUTTING TIPS• C6 carbide tips used on 165mm to 185mm Sheet Metal cuttingblades.• C6 Carbide is an ultra-high performance cutting tip madeup of TUNGSTEN CARBIDE and COBALT and has a Cobalt contentof 6%.• HARDNESS: C6 Grade Carbide has a hardness of 1800 to 2500Vickers. This means that it is extremely hard and canmaintain a sharp cutting edge for a long time.• WEAR RESISTANCE: C6 Grade Carbide is highly resistant towear which means that it can withstand the friction andheat generated during cutting operations.• TOUGHNESS: C6 Grade Carbide has a good balance of hardnessand toughness which means that it is less prone to breakingand chipping than materials that are more brittle.• HEAT RESISTANCE: C6 Grade Carbide can withstand hightemperatures without losing its hardness or strength. Thismakes it ideal for use in cutting applications that generatea lot of heat.
- Teeth: Specifications• Blade Diameter: 135mm (5-3/8 )• Number of Teeth: 50• Blade Bore: 20mm• Blade Kerf: 1.2mm• Maximum RPM: 6000rpm• Maximum Cut Thickness: 1.2mm• Rake: -10°
