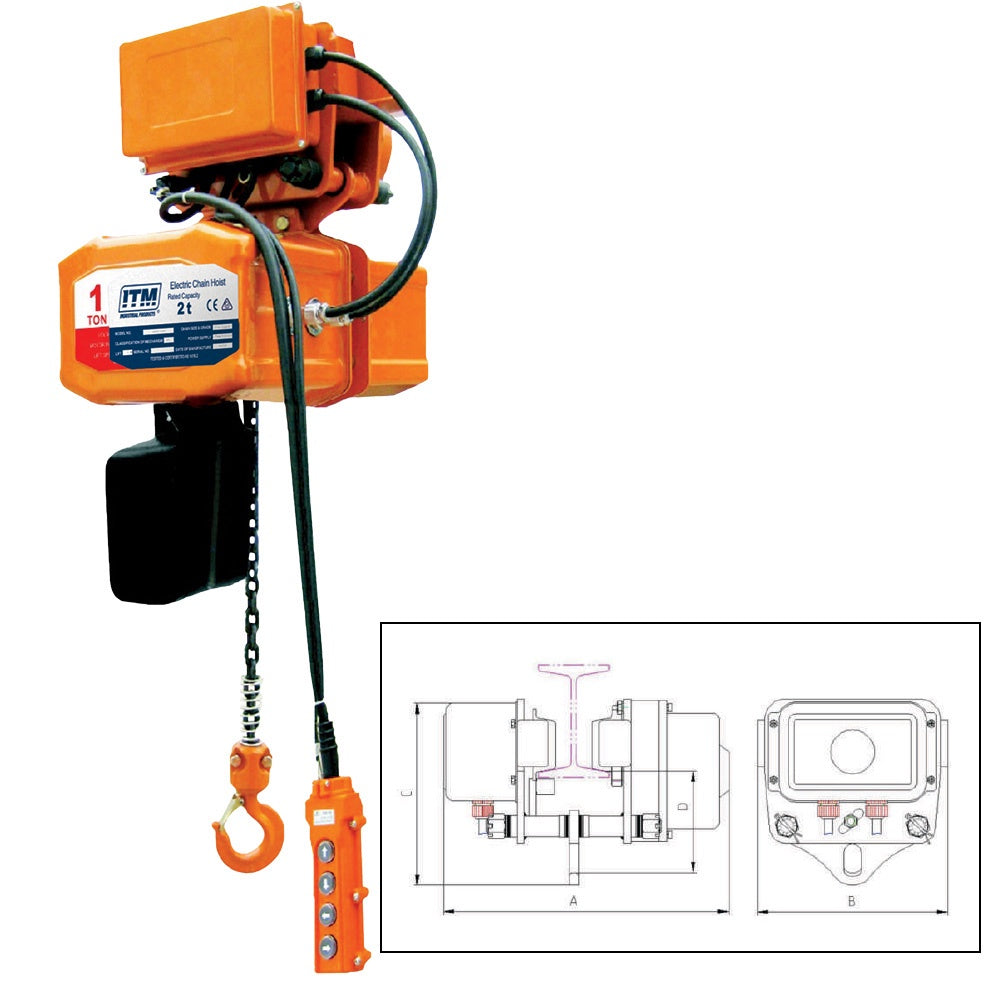

Product: ITM Electric Hoist - 240V - 2 Ton-3 Meter Lift
Specifications:
-
SKU: TM9005-02003
-
Length: 7.1mm
Additional Details:
- ITM 240V Electric Hoist w/ Electric Trolley2 Ton 3 Meter Lift
- Features• Japanese technology with dual braking system to ensuresafe and reliable operation• Compact and light weight design• Weight overload limiter for safety• Thermal overload motor protection• Single phase 240V motor• Upper and lower limit switches to prevent chain runout• Chain length can be altered by ITM to your required length• Tested & certified to AS 1418.2• Test certificate & user manual supplied
- Specifications• Rated Capacity: 2.0 Tonne• Standard Lift: 3m• Hoist Motor: 1200w 240v 1P• Trolley Motor: 300w 240v 1P• No.Of Chain Drops: 2• Chain Type: Grade: 80 7.1mm• Lift Speed: 3m/min• Trolley Speed: 20m/min• Size of I-beam: 74-124mm• Min. Radius Of Curve: 1.1m• Net Weight: 107kg
- Length: • Dimensions (mm) (FRONT)• A: 245• B: 245• C: 124• D: 176• E: 350• F: 610• H: 630
- Length: • Dimensions (mm) (TOP)• A: 296• B: 270• C: 264• D: 180
