The Jl Audio Xdm200/2 2 Channel Class D Full Range Car & Marine Amplifier 200 Watts from Jl Audio is designed for reliable performance and professional use across workshop, trade, automotive, and industrial applications in New Zealand.
Features:
• Trusted Jl Audio quality
• Ideal for car audio applications
• Suitable for amplifiers use
• Professional trade and workshop performance
• Fast NZ-wide delivery from NZ Fasteners
Product Details:

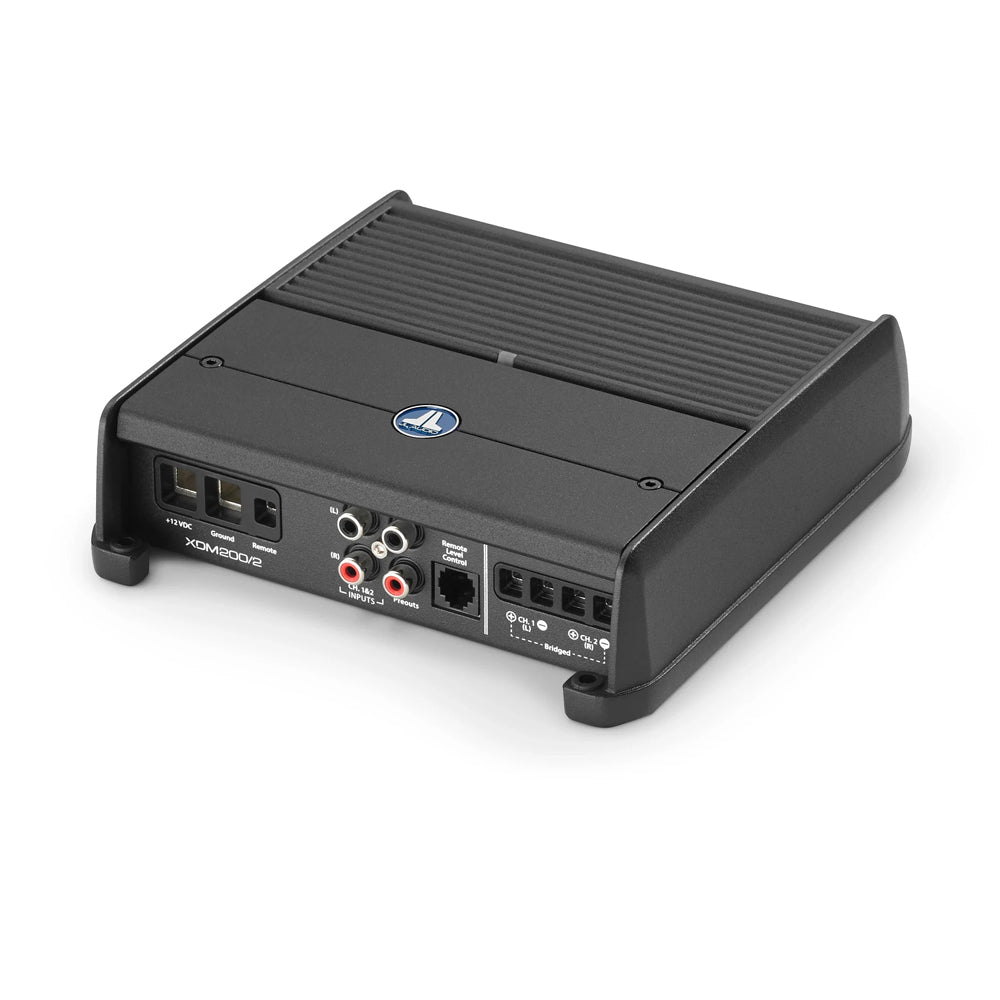

2-Channel Class D Full-Range Car/Marine Amplifier, 100 W x 2 @ 2 O / 75 W x 2 @ 4 O - 14.4V The tiny XDM200/2 packs a serious full-range punch, delivering a staggering 100 watts per channel into 2 ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is our advanced NexD™ high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency. Suitable for car or boat installations, the XDM200/2 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades. The XDM200/2 includes a 12 dB / octave filter which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or cockpit. Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access. Rated Continuous (RMS) Power @ 14.4 V @ 4 O 75 W RMS x 2 @ 2 O 100 W RMS x 2 Bridged @ 4O 200 W RMS x 1 General Specifications Frequency Response 12 Hz - 22 kHz (+0, -1dB) S/N Ratio, referred to highest rated power >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 O >150 / 50 Hz Damping Factor @ 2 O >75 / 50 Hz THD+N @ Rated Power <1% @ 2 O per Ch. Input Voltage Range @ RCA Inputs 200 mV - 4 V RMS Min.Copper Power / Ground Wire Gauge 8 AWG wire Fuse Rating 20 A (AFS, AGU or MaxiFuse™)
