Description

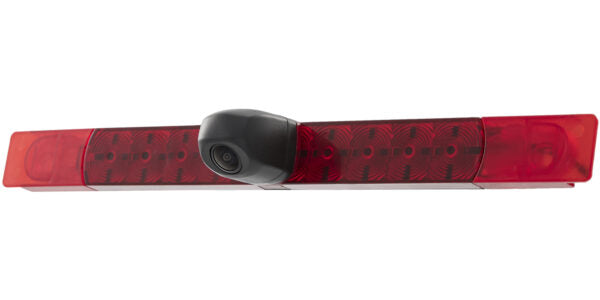

The CAM-39 is a universal Brake light and reversing camera, designed for use on most cars and vans. The camera has a 720 x 480 resolution with a 170-degree wide angle view giving the driver a clear high res image behind them, also assisting the driver are removable parking lines to aid in reversing maneuvers. The CAM-39 is also IP67 rated to withstand all regular weather occurrences.
Product Specifications
-
Image Sensor: 1/3”
-
TV Lines: 480
-
Resolution: 720 x 480
-
Minimum Illumination: 0.1 Lux
-
TV System: NTSC
-
Waterproof Rating: IP67
-
Viewing Angle: 170 Degrees (H) 90 Degrees (V)
-
Parking Lines: Yes (Removable)
-
Enhanced Performance In Low Light: Yes
-
Video Output: 1.0V p-p 75ohm
-
Operating Voltage: 12-24V DC (Negative Ground)
- Operating Temperature: -20 Degrees C to +75 Degrees C
